Aluminum Radiator for 1988-1997 Chevy/GMC C1500 C2500 C3500 K1500 K2500 K3500 5.0L 5.7L V8 4.3L V6 Cheyenne Silverado Sierra Scottsdale 3 Row Crossflow Radiators Shroud 2 X 12" Fans Relay

Fitment: For chevy C1500/C2500 5.0L V8 GAS 1988-1995 For chevy C1500/C2500 5.7L V8 GAS 1988-1994 For chevy C1500/C2500 5.7L V8 CNG 1992-1993 For chevy C3500 5.7L V8 GAS 1988-1994 For chevy K1500/K2500 5.0L V8 GAS 1988-1995 For chevy K1500/K2500 5.7L V8 GAS 1988-1994 For chevy K2500 5.7L V8 CNG 1992-1993 For chevy K3500 5.7L V8 GAS 1988-1994 For chevy P30 4.3L V6 GAS 1996-1997 For GMC C1500/C2500 5.0L V8 GAS 1988-1995 For GMC C1500/C2500 5.7L V8 GAS 1988-1994 For GMC C2500 5.7L V8 CNG 1992-1993 For GMC C3500 5.7L V8 GAS 1988-1994 For GMC K1500/K2500 5.0L V8 GAS 1988-1995 For GMC K1500/K2500 5.7L V8 GAS 1988-1994 For GMC K2500 5.7L V8 CNG 1992-1993 For GMC K3500 5.7L V8 GAS 1988-1994 For GMC P3500 4.3L V6 GAS 1996-1997 Package Include: 1 X 3-Row Aluminum Radiator 1 X Aluminum Shroud 2 X12" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Radiator Details: Placement on Vehicle: Engine Compartment, Front Style: Crossflow Radiator Mounting Style: Bolt-On Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

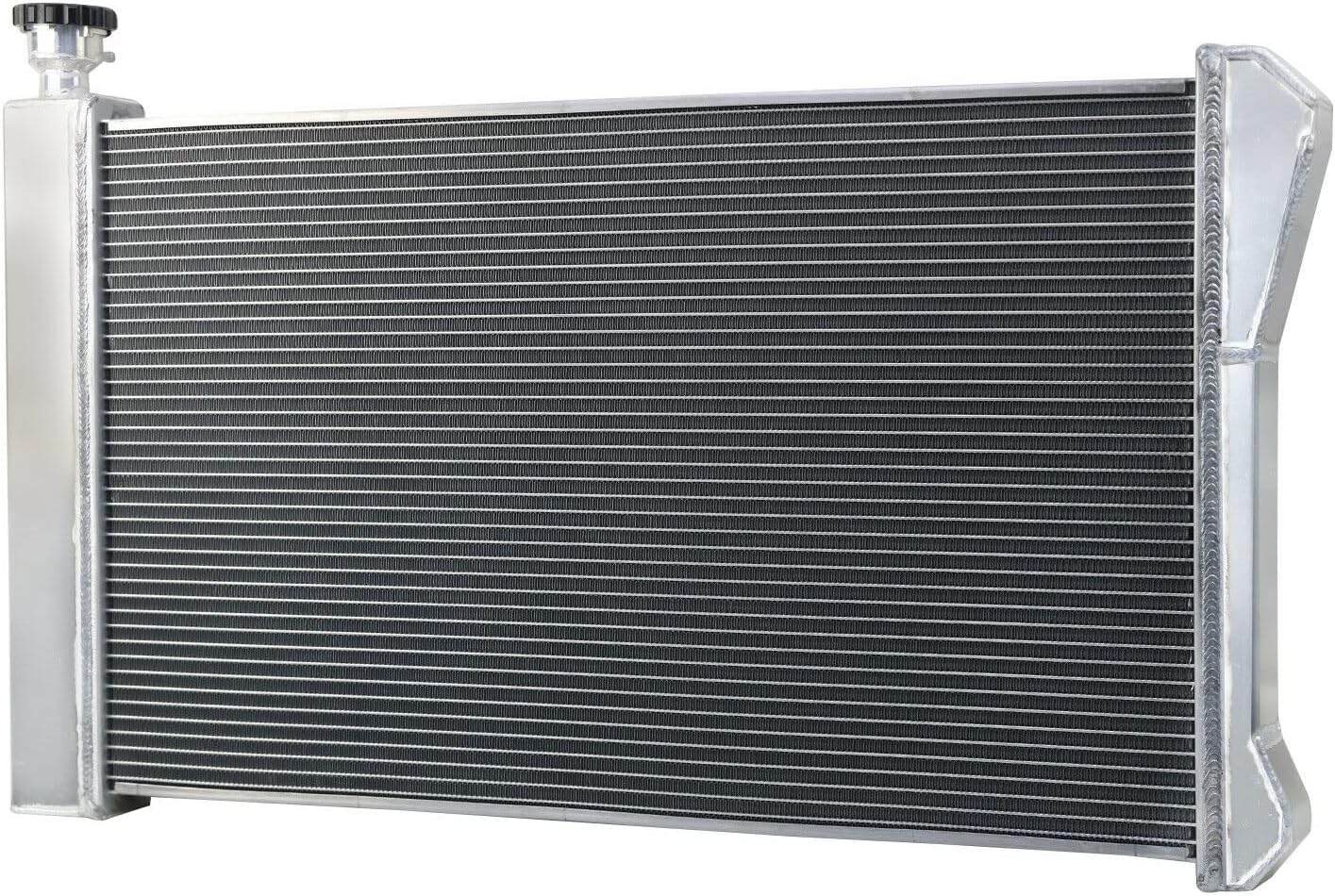

• Core Size : 28.27" H x 17.25" W x 1.73" T ; Overall Size : 33.86" H x 20.87" W x 5.71" T ; Inlet/Outlet : 1.58"/1.34" ; Upper Inlet: located on the Driver side ; Lower Outlet: located on the Passenger side

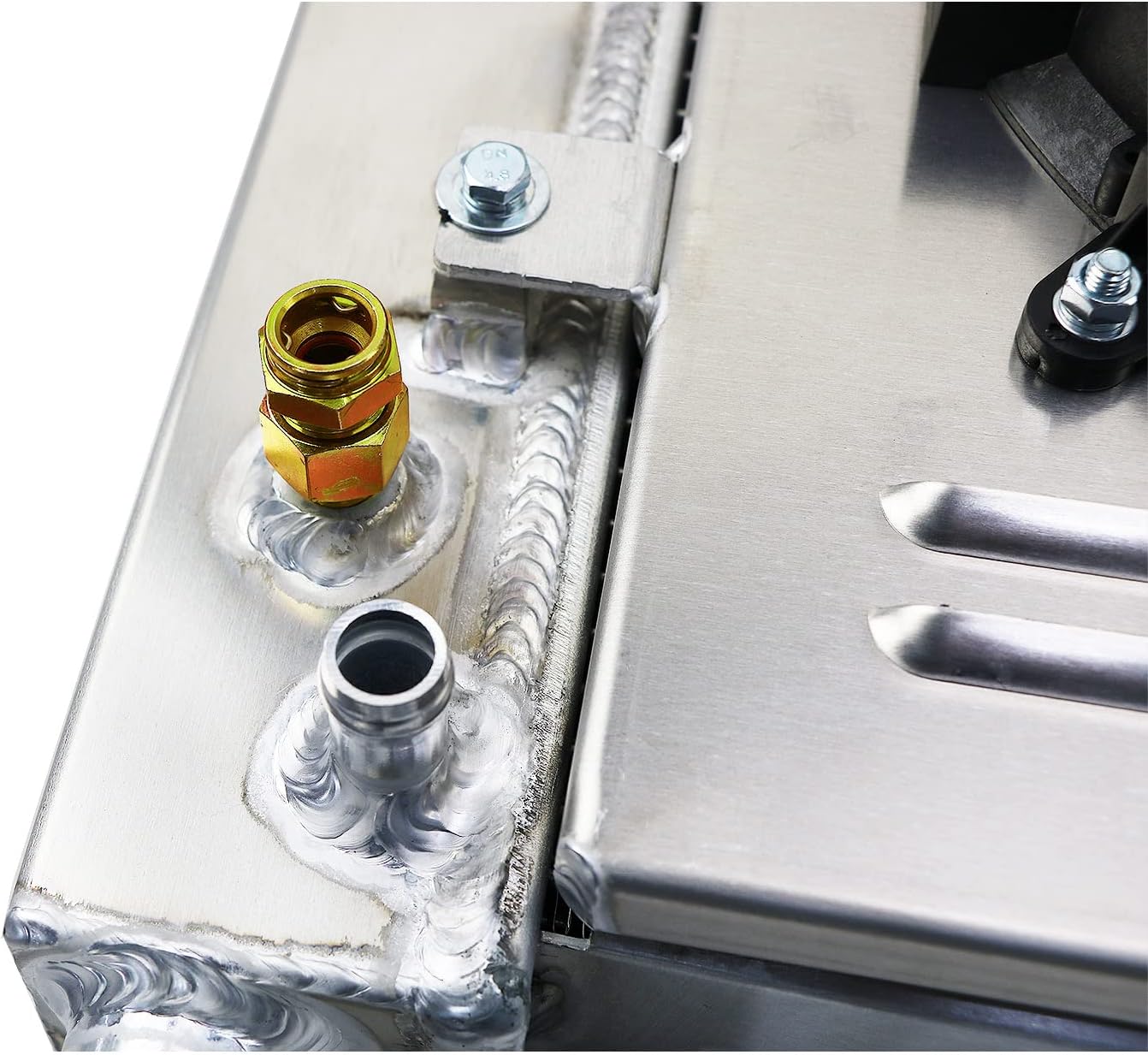

• Oil Cooler: include with fast connector ; Transmission Oil Cooler：1/2-20UNF ; Engine Oil Cooler：No ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain
• OE/OEM Part Number: 1541, 1591, 1690, 1805, 20365, 20560, 20671, 20593, 3058765, 3058766
• Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
• Brazed core technology to guarantee optimum performance and dependability ; Carefully crafted to exceptional OE standards for precise fit.
